| Technical Specifications | ||
|---|---|---|
| Product | ANEX6D1F | |
| Product Revision | rev 1.0 | |
| Antenna Type | Dual Antenna (2T2R), omnidirectional | |
| Antenna Gain | 6dBi | |
| Supported Wireless Frequencies | 2.4GHz, 5GHz, 6GHz | |
| Antenna Impedance | 50Ω | |
| Antenna Connector | RP-SMA male | |
| External Base | 1.5m cable, foldable magnetic base (non detachable) | |
| Dimensions | 70 x 30 x 180 mm (without cable) | |
| Weight | 0.065 kg | |
| Compatibility | ||
| IEEE Support | 802.11 a/b/g/n/ac/ax/be | |
| Additional Information | ||
| Regulatory Compliance | FCC Part 15 Class B, CE, RoHS | |
| Operating Environment | Temperature: 0 ℃ to 55 ℃ Relative Humidity: 10%-90% (non-condensing) |
|
| Storage Environment | Temperature: -10℃ to 70℃ Relative Humidity: 10%-90% (non-condensing) |
|
| Packaging | ||
| Contents |
|
|
| Dimensions | 180 x 40 x 40 mm | |
| Weight | 0.07 kg | |
Sold out

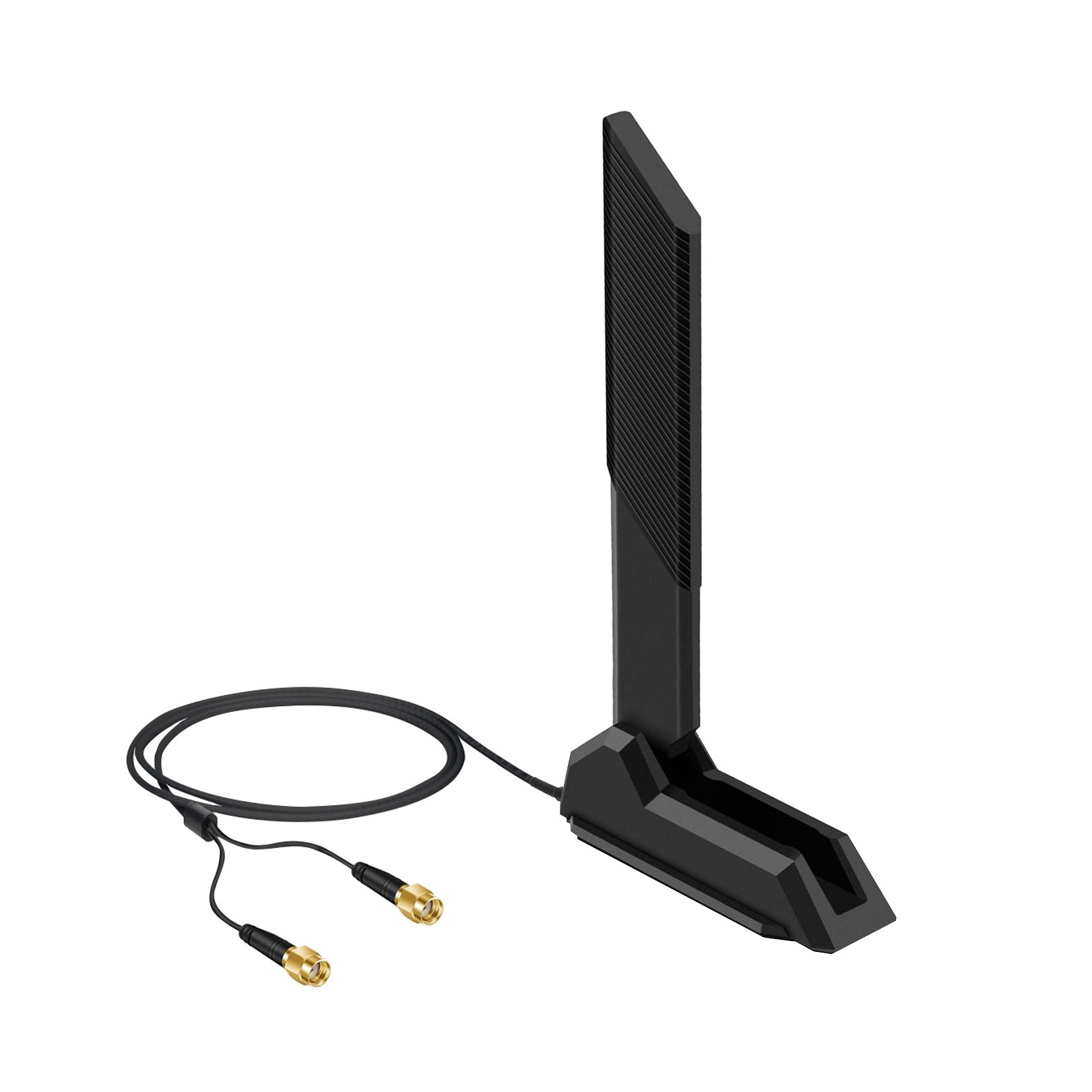

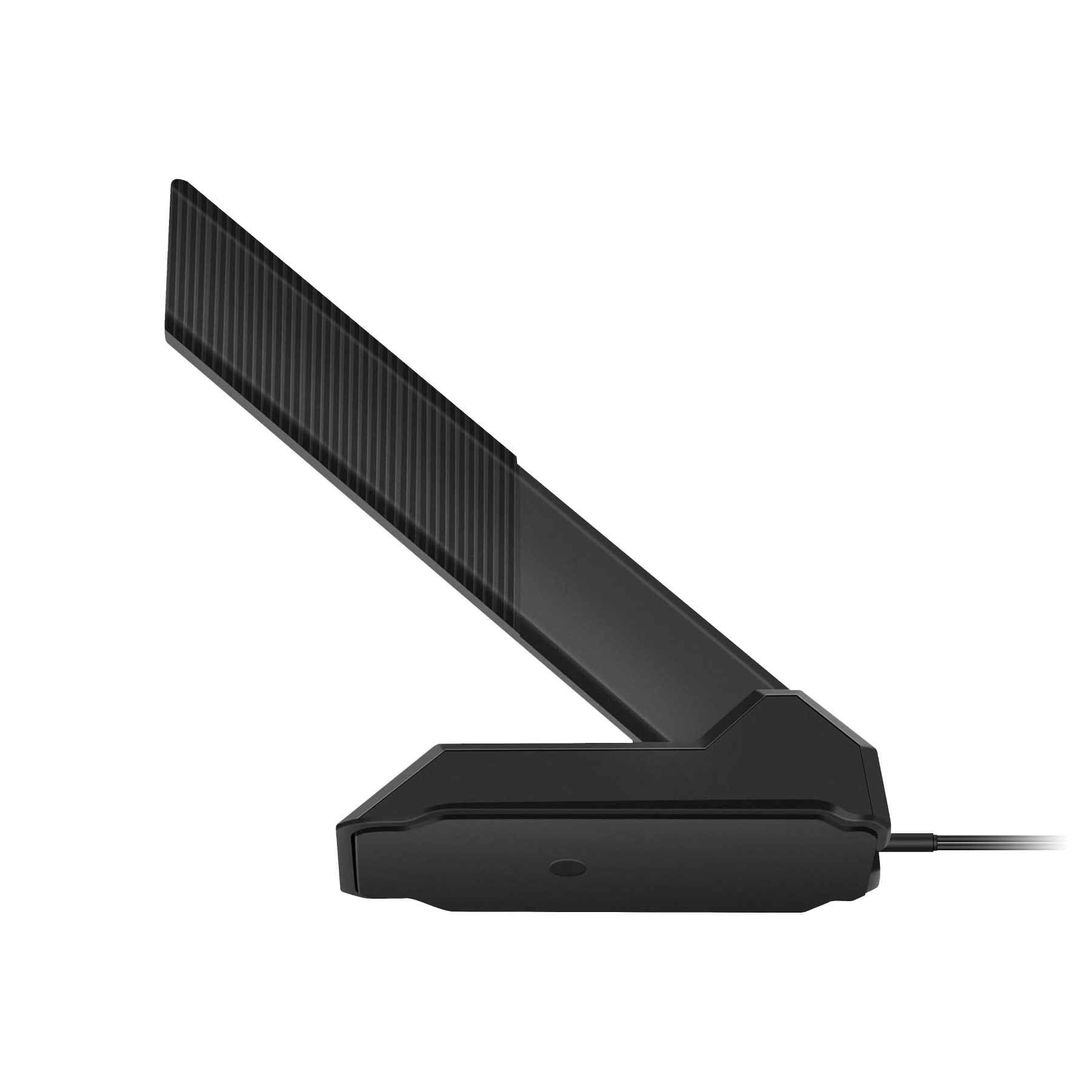

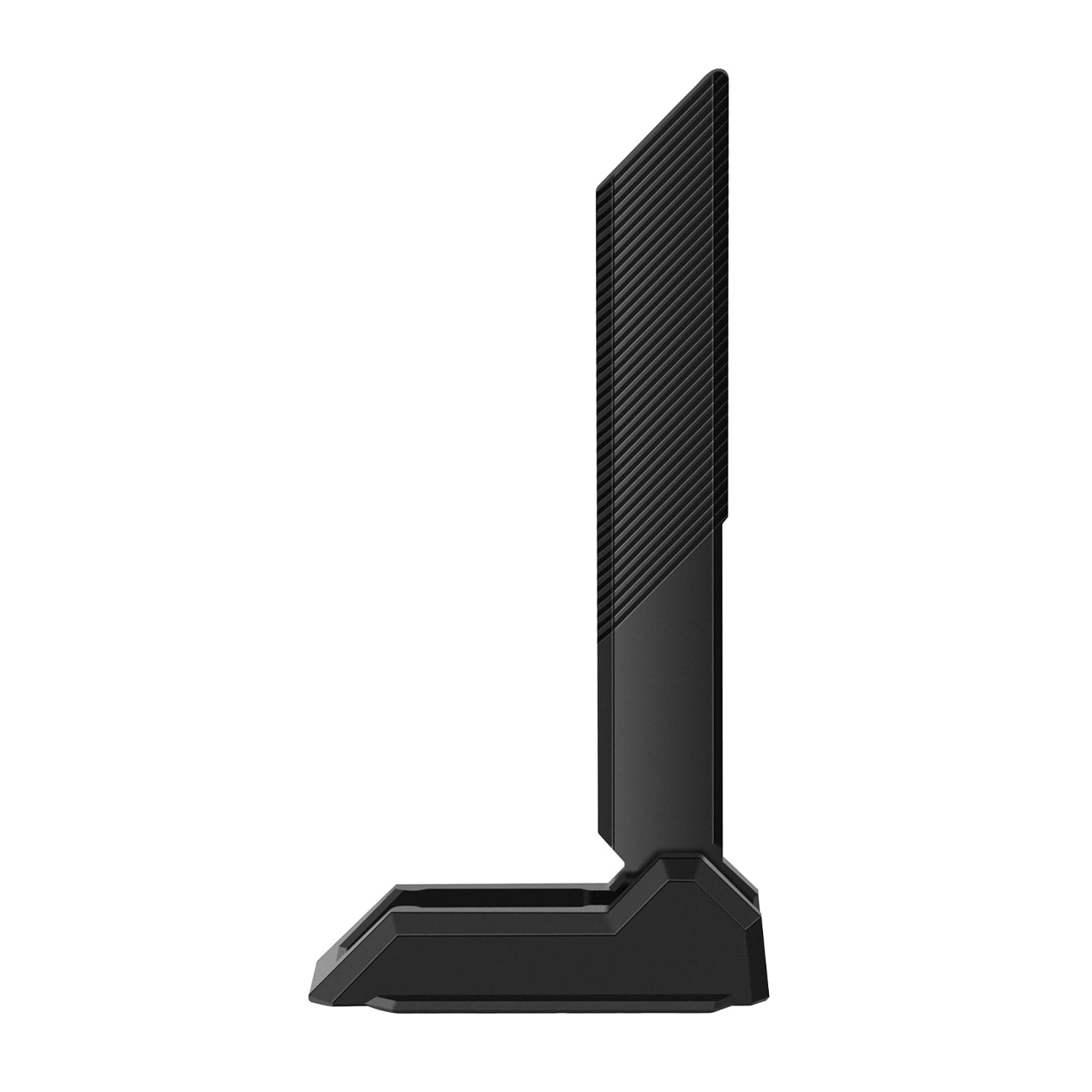

Tri-Band WiFi High-Gain RP-SMA Male Foldable External Antenna with Magnetic Base
- Double channel omnidirectional external antenna featuring a foldable magnetic base
- Ultra-high 6dBi gain
- Tri-band support: 2.4GHz, 5GHz and 6GHz native WiFi frequencies
- Compatible with IEEE 802.11 a/b/g/n/ac/ax/be compliant devices
- Double RP-SMA male connector
- 1.5m extension cable length
Product Warranty
For more details regarding Tylogy products warranty, please check out our Warranty Policy page.
Product Safety
Starting December 13th, 2024, any product sold on the EU market must comply with the GPSR (Regulation EU 2023/988). As part of that directive, economic operators placing products on the EU market must disclose the manufacturer's name and address and nominate a local EU representative entrusted with tasks relating to the safety of the products.
Product Manufacturer:
HCX Technologies Limited
Unit B, 11/F, 23 Thomson Road
Wan Chai District
Hong Kong SAR China
EU Representative:
Firx SAS (dba. HCX Europe)
32 boulevard de Strasbourg
CS 30108, 75468 Paris CEDEX 10
France
Key Specifications
| Antenna Type |
External Antenna(s) |
|---|---|
| WiFi Technology |
WiFi 5 ,WiFi 6/6E ,WiFi 7 |
